BALL-TRACKING ROBOT

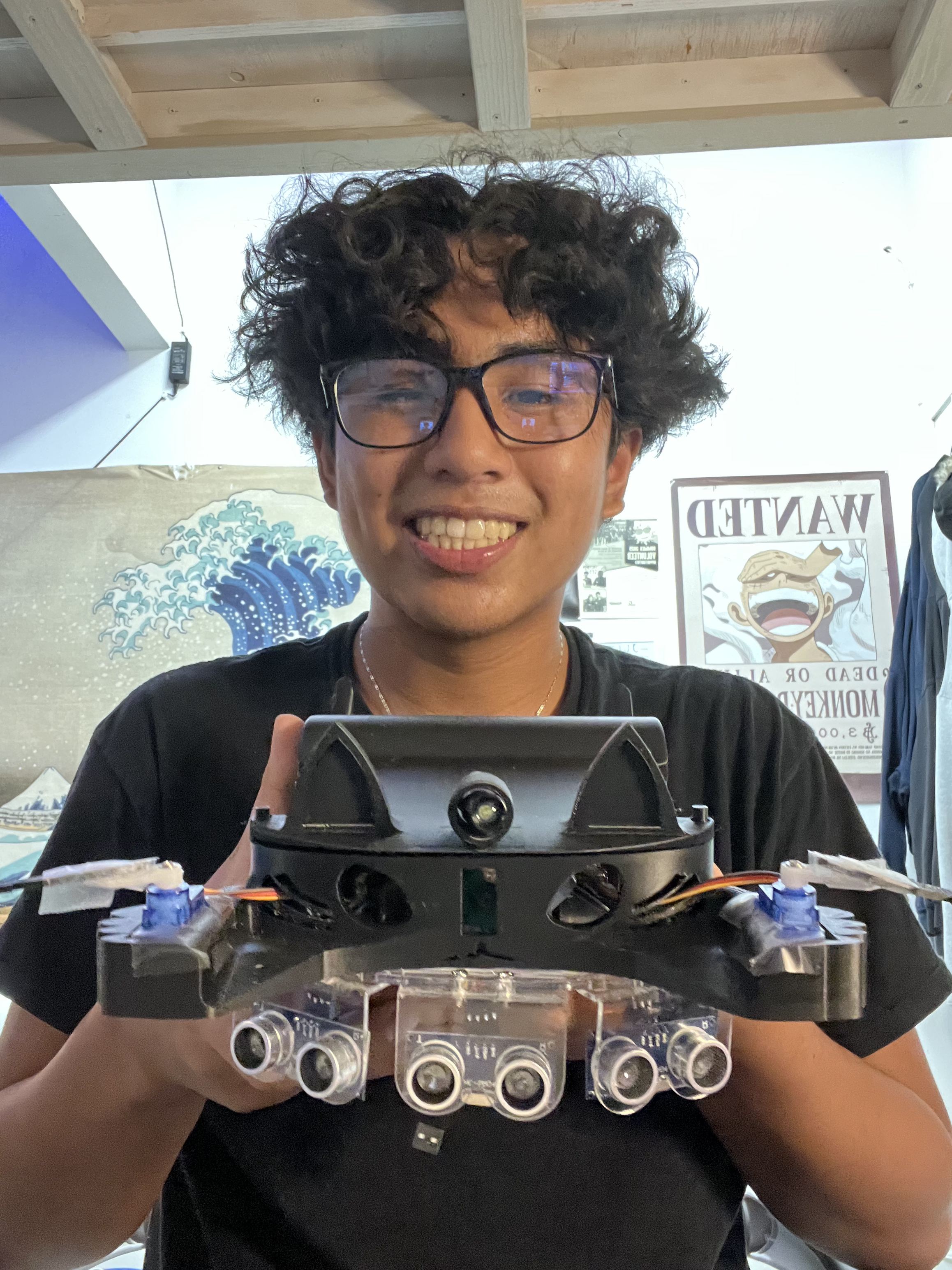

I MADE A CATMOBILE
In other words, a ball-tracking robot with the shell of cat.
Powered by Raspberry Pi and Python, it uses a camera, ultrasonic sensors, motor drivers, motors, and servos to autonomously navigate through obstacles with ease and get to the red ball, even in the dark - and when it’s there, it holds onto it! Not only is this smart robot made to the highest efficiency, it’s designed to emulate a batmobile but as a cat instead.
Engineer | School | Area of Interest | Grade |
---|---|---|---|
Noah M | Gretchen Whitney High School | Electrical Engineering | Incoming Senior |
Let’s start with its current state, as we move down and see how I got there.
Final Milestone
After these three weeks, I am very satisfied with how the robot turned out.
Since the last milestone, I 3D modeled and printed the claw and shell of my robot, and attached it using tape. I used specific measurements to appropiately organize each part, and luckily, my first print allowed each part to fit seamlessly. Using SG90 servos, I embedded more code for the claw function, and together, the robot was able to grab the ball. For the final part, I inserted a flashlight; now it was able to work in the dark.
My biggest challenges mainly included the coding aspect of the project. It was a steep learning curve of working with the raspberry pi and electrical devices through code mostly by myself, as I had to experiment and research countless times. My biggest triumph was giving life to my robot; I was able to apply my own skills and create something that I am proud of.
The main takeaways from the program were how many electrical devices - raspberry pi, breadboards, servos, motor drivers, ultrasonic sonars, and much more - and the code for running the robot work. I learned the importance of not giving up and learning from my mistakes to reiterate and improve.
In the future, I hope to expand my knowledge on engineering, develop my skills, and seek electrical engineering in college.
Testing the servos:
import pigpio
import time
RC = 16
LC = 12
pi = pigpio.pi()
while True:
control = input()
if "grab" in control:
pi.set_servo_pulsewidth(LC, 1100)
pi.set_servo_pulsewidth(RC, 2000)
elif "rest" in control:
pi.set_servo_pulsewidth(LC, 2000)
pi.set_servo_pulsewidth(RC, 1100)
pi.stop()
break
Second Milestone
Since the last milestone, I’ve worked tirelessly on completing the baseline project and preparing for a later modification of a claw. Some aspects that I have added include installation and code for ultrasonic sonars and a raspberry pi camera. The sonars calculates the distance of objects in front of it in thousanths of a second; the pi camera updates a livestream in real time displaying what it sees, as well as tracking the appropiate shades of red, grouping the largest areas of red, and calculating the offset of the ball from the center of the frame.
The hardest part: combining the sonars, camera, and motors together in one piece of code. The main aspects that included this were writing code to bring the robot to line up a few centimeters behind the ball, spin when the ball is not in sight, stop at unusual obstructions, turn to the side from where the ball was last, and, utimately, ensure smooth turns. The robot had a hard time centering the ball; the motors often overresponded to voltage and would overshoot, and the robot would infinitely sway side to side. After many experiments and iterations, I was able to overcome. The most surprising part of this project so far is how I have been able to persevere despite these challenges.
Before my final milestone, now that it’s prepared for a later modification, I will work on my modification and putting in my best effort to give life to my robot.
Testing the sonars:
import RPi.GPIO as GPIO
import time
GPIO.setmode(GPIO.BCM)
Echo1 = 26
Trigger1 = 21
Echo2 = 2
Trigger2 = 3
Echo3 = 9
Trigger3 = 10
def sonar (GPIO_Trigger,GPIO_ECHO):
start=0
stop=0
distance = 1000
GPIO.setup(GPIO_Trigger, GPIO.OUT)
GPIO.setup(GPIO_ECHO, GPIO.IN)
GPIO.output(GPIO_Trigger, False)
time.sleep(0.01)
while distance > 5:
GPIO.output(GPIO_Trigger, True)
time.sleep(0.00001)
GPIO.output(GPIO_Trigger, False)
begin = time.time()
while GPIO.input(GPIO_ECHO) == 0 and time.time()<begin+0.05:
start = time.time()
while GPIO.input(GPIO_ECHO) == 1 and time.time()<start+0.1:
stop = time.time()
elapsed = stop - start
distance = elapsed * 34000/2
return distance
for i in range(1,200):
distance = sonar(Trigger1, Echo1)
print("right: ", distance)
distance = sonar(Trigger3, Echo3)
print("front: ", distance)
distance = sonar(Trigger2, Echo2)
print("left: ", distance)
print("\n")
time.sleep(0.5)
Testing the camera:
#!/usr/bin/python3
import time
from picamera2 import Picamera2
from picamera2.encoders import H264Encoder
from picamera2.outputs import FfmpegOutput
picam2 = Picamera2()
video_config = picam2.create_video_configuration()
picam2.configure(video_config)
encoder = H264Encoder(10000000)
output = FfmpegOutput('test.mp4', audio=True)
picam2.start_recording(encoder, output)
time.sleep(10)
picam2.stop_recording()
First Milestone
The ball-tracking robot utilizes two mechanics - a camera and ultrasonic sonars - to evaluate the distance and color of objects through sonar detection and image processing, while sending voltage to its two motors that give it a full range of motion; in total, these functions work through implementing code that sends commands to the Raspberry Pi.
The current stage of my robot is that while its base/shell is constructed, I wired a Raspberry Pi to a motor driver module through female to male connectors via a breadboard in the middle, which, through code, allows me to control the movement of the robot’s wheels. When running the code through VS Code, the robot remains at rest unless acted upon; therefore, I can write certain inputs into the terminal that give me full control of the robot’s direction. Separately, I worked on flickering LED lights in order to test the functionality of my Raspberry Pi and deepen my knowledge on its process.
Testing the LEDs:
import RPi.GPIO as GPIO
import time
leds_number = 18
GPIO.setmode(GPIO.BCM)
def flicker(leds_number):
GPIO.setup(leds_number, GPIO.OUT)
print("LED On")
GPIO.output(leds_number,GPIO.HIGH)
time.sleep(0.5)
print ("Led Off")
GPIO.output(leds_number, GPIO.LOW)
time.sleep(0.5)
for i in range (10):
flicker(leds_number)
leds_number = 21
flicker(leds_number)
leds_number = 26
flicker(leds_number)
leds_number = 18
Testing the motors:
import RPi.GPIO as GPIO
import time
# Define GPIO pins for motor
# LMC - Left Motor clockwise, RMCC - Right Motor Counter-cloclwise
LMCC = 15
LMC = 20
RMCC = 6
RMC = 19
#Turn motors off
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
for pin in [LMCC, LMC, RMCC, RMC]:
GPIO.setup(pin, GPIO.OUT)
# PWM at 100 Hz
PWM1A = GPIO.PWM(LMCC, 100)
PWM1B = GPIO.PWM(LMC, 100)
PWM2A = GPIO.PWM(RMCC, 100)
PWM2B = GPIO.PWM(RMC, 100)
PWM1A.start(0)
PWM1B.start(0)
PWM2A.start(0)
PWM2B.start(0)
def RMforward(speed=100):
PWM1A.ChangeDutyCycle(0)
PWM1B.ChangeDutyCycle(speed)
def RMbackward(speed=100):
PWM1A.ChangeDutyCycle(speed)
PWM1B.ChangeDutyCycle(0)
def LMforward(speed=100):
PWM2A.ChangeDutyCycle(0)
PWM2B.ChangeDutyCycle(speed)
def LMbackward(speed=100):
PWM2A.ChangeDutyCycle(speed)
PWM2B.ChangeDutyCycle(0)
def stop():
for pwm in [PWM1A, PWM1B, PWM2A, PWM2B]:
pwm.ChangeDutyCycle(0)
while(1):
control = input()
if "forward" in control:
LMforward(50)
RMforward(50)
time.sleep(0.5)
stop()
elif "backward" in control:
RMbackward(40)
LMbackward(40)
time.sleep(0.5)
stop()
elif "left" in control:
LMbackward(40)
RMforward(40)
time.sleep(0.5)
stop()
elif "right" in control:
RMbackward(40)
LMforward(40)
time.sleep(0.5)
stop()
elif "leave" in control:
break
GPIO.cleanup()
I’ve faced harsh technical challenges that required several hours of debugging in order to work around them. For instance, I struggled with establishing a connection between my Raspberry Pi and computer as a result of my computer’s inability to connect to a network wirelessly. Therefore, I connected it to an ethernet cable; however, I couldn’t find out which network it belonged to. Because the Raspberry Pi requires a wireless connection (rather than a wired one, which would not be sustainable for when I complete the robot), I manually logged into different networks through its desktop mode to test whether it could establish a connection.
My hope for this project is to expand beyond the blueprint and implement my own modifications to bring the robot to life.
Schematics
Base Foundation
Attachable Back End
Lid
Claw
Final Code
from flask import Flask, Response, render_template_string
from picamera2 import Picamera2
from datetime import datetime
import RPi.GPIO as GPIO
import pigpio
import time
import cv2
import numpy as np
#Marks which side the ball was seen last
marker = 0
# Define GPIO pins for motor
# LMC - Left Motor clockwise, RMCC - Right Motor Counter-cloclwise
LMCC = 15
LMC = 20
RMCC = 6
RMC = 19
# Define GPIO pins for ultrasonic sensors
Echo1 = 26
Trigger1 = 21
Echo2 = 2
Trigger2 = 3
Echo3 = 9
Trigger3 = 10
# Define GPIO pins for servos
RC = 16
LC = 12
pi = pigpio.pi()
#Set up Picamera settings
app = Flask(__name__)
picam = Picamera2()
picam.configure(picam.create_preview_configuration(main={"format":"BGR888", "size": (640, 480)}))
picam.start()
FRAME_WIDTH = 640
CENTER_X = FRAME_WIDTH // 2
#Turn motors off
GPIO.setmode(GPIO.BCM)
GPIO.setwarnings(False)
for pin in [LMCC, LMC, RMCC, RMC]:
GPIO.setup(pin, GPIO.OUT)
# PWM at 100 Hz
PWM1A = GPIO.PWM(LMCC, 100)
PWM1B = GPIO.PWM(LMC, 100)
PWM2A = GPIO.PWM(RMCC, 100)
PWM2B = GPIO.PWM(RMC, 100)
PWM1A.start(0)
PWM1B.start(0)
PWM2A.start(0)
PWM2B.start(0)
def RMforward(speed=100):
PWM1A.ChangeDutyCycle(0)
PWM1B.ChangeDutyCycle(speed)
def RMbackward(speed=100):
PWM1A.ChangeDutyCycle(speed)
PWM1B.ChangeDutyCycle(0)
def LMforward(speed=100):
PWM2A.ChangeDutyCycle(0)
PWM2B.ChangeDutyCycle(speed)
def LMbackward(speed=100):
PWM2A.ChangeDutyCycle(speed)
PWM2B.ChangeDutyCycle(0)
def stop():
for pwm in [PWM1A, PWM1B, PWM2A, PWM2B]:
pwm.ChangeDutyCycle(0)
#Function to read distance from ultrasonic sensors
def sonar (GPIO_Trigger,GPIO_ECHO):
#Define variables
start=0
stop=0
distance = 1000
#Set GPIO pins
GPIO.setup(GPIO_Trigger, GPIO.OUT)
GPIO.setup(GPIO_ECHO, GPIO.IN)
#Turn off the trigger
GPIO.output(GPIO_Trigger, False)
time.sleep(0.01)
while distance > 5:
#Ultrasonic sensor sends a signal
GPIO.output(GPIO_Trigger, True)
time.sleep(0.00001)
GPIO.output(GPIO_Trigger, False)
#Variable for current time
begin = time.time()
#Measuring the start - when the signal is sent
while GPIO.input(GPIO_ECHO) == 0 and time.time()<begin+0.05:
start = time.time()
#Measuring the stop - when the echo from the signal is received
while GPIO.input(GPIO_ECHO) == 1 and time.time()<start+0.1:
stop = time.time()
#Calculate the distance
elapsed = stop - start
distance = elapsed * 34000/2
return distance
def claw():
print("3. Grab")
pi.set_servo_pulsewidth(LC, 1100)
pi.set_servo_pulsewidth(RC, 2000)
time.sleep(2)
pi.set_servo_pulsewidth(LC, 2000)
pi.set_servo_pulsewidth(RC, 1100)
#Function to move the car every thousandth of a second
def drive(offset, area):
#distance from right ultrasonic sensor
distanceR = sonar(Trigger1, Echo1)
#distance from left ultrasonic sensor
distanceL = sonar(Trigger2, Echo2)
#distance from front ultrasonic sensor
distanceF = sonar(Trigger3, Echo3)
global marker
if(area < 5000):
print("0. Looking")
if (marker <= 0):
RMforward(30.8)
LMbackward(30.8)
time.sleep(0.0001)
print("i turn left now")
elif (marker > 0):
RMbackward(30.8)
LMforward(30.8)
time.sleep(0.0001)
print("i turn right now")
return
else:
print("1. Object found")
if distanceR > 20 and distanceL > 20 and distanceF > 20:
#print("DRIVE MODE ENABLED")
if(offset>50):
RMforward(40)
LMforward(40)
time.sleep(0.0001)
RMforward(30)
LMforward(40)
time.sleep(0.0001)
RMforward(30)
LMforward(45)
time.sleep(0.0001)
#print("RIGHT")
elif(offset<-50):
RMforward(40)
LMforward(40)
time.sleep(0.0001)
RMforward(40)
LMforward(30)
time.sleep(0.0001)
RMforward(45)
LMforward(30)
time.sleep(0.0001)
#print("LEFT")
elif(offset != 0):
LMforward(30)
RMforward(30)
time.sleep(0.0001)
#print("FORWARD")
else:
stop()
#print("STOP")
elif (distanceL <= 20 or distanceR <= 20):
if (area > 3000):
print("Extra: Backing up")
if (distanceL > 20):
RMbackward(20)
LMbackward(20)
time.sleep(0.0002)
RMbackward(40)
LMbackward(40)
time.sleep(0.0003)
RMbackward(50)
LMbackward(40)
time.sleep(0.0001)
RMbackward(60)
LMbackward(40)
time.sleep(0.0001)
elif (distanceR > 20):
RMbackward(20)
LMbackward(20)
time.sleep(0.0002)
RMbackward(40)
LMbackward(40)
time.sleep(0.0003)
RMbackward(40)
LMbackward(50)
time.sleep(0.0001)
RMbackward(40)
LMbackward(60)
time.sleep(0.0001)
else:
print("Wait for procedure")
stop()
elif(distanceL > 20 and distanceF < 8 and distanceR > 20):
print("2. In optimal position")
print("right: ", distanceR)
print("front: ", distanceF)
print("left: ", distanceL)
stop()
claw()
elif(8 < distanceF < 20):
print("Extra: Just a little closer")
LMforward(35)
RMforward(35)
time.sleep(0.0001)
marker = offset
return
#Function to find red (and its area) in frame and set up website visuals
def track_object(frame):
hsv = cv2.cvtColor(frame, cv2.COLOR_BGR2HSV)
lower_red1 = np.array([0,100,30])
upper_red1 = np.array([10,255,255])
lower_red2 = np.array([160, 100, 30])
upper_red2 = np.array([179, 255, 255])
mask1 = cv2.inRange(hsv, lower_red1, upper_red1)
mask2 = cv2.inRange(hsv, lower_red2, upper_red2)
mask = cv2.bitwise_or(mask1, mask2)
mask = cv2.erode(mask, None, iterations=2)
mask = cv2.dilate(mask, None, iterations=2)
contours, _ = cv2.findContours(mask, cv2.RETR_EXTERNAL,cv2.CHAIN_APPROX_SIMPLE)
offsetPos = 0
global area
area = 0
if contours:
area = cv2.contourArea(max(contours, key=cv2.contourArea))
largest = max(contours, key=cv2.contourArea)
M = cv2.moments(largest)
if M["m00"] > 0:
centre_x = int(M["m10"] / M["m00"])
centre_y = int(M["m01"] / M["m00"])
offset = centre_x - CENTER_X
offsetPos = offset
if abs(offset) < 30:
position = "Centered"
elif offset < 0:
position = "Left"
else:
position = "Right"
cv2.drawContours(frame, [largest], -1, (0, 255, 0), 2)
cv2.circle(frame, (centre_x, centre_y), 5, (255, 0, 0), -1)
cv2.putText(frame, f"Offset: {offset}({position})", (10, 30),
cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255, 255, 255), 2)
return frame, offsetPos, area
#Function to generate frames for the video stream
def generate_frames():
while True:
frame = picam.capture_array()
frame = cv2.cvtColor(frame, cv2.COLOR_RGB2BGR)
frame, offset, area = track_object(frame)
drive(offset, area)
ret, buffer = cv2.imencode('.jpg', frame)
jpg_frame = buffer.tobytes()
yield (b'--frame\r\n'
b'Content-Type: image/jpeg\r\n'
b'Content-Length: ' + f"{len(jpg_frame)}".encode()
+ b'\r\n\r\n' +
jpg_frame + b'\r\n')
#Setting up web browser via HTML
@app.route('/')
def index():
return render_template_string('''
<html>
<head><title>Red Ball Tracking Stream</title></head>
<body>
<h2>Live Tracking</h2>
<img src="/video_feed">
</body>
</html>
''')
#Function to handle video feed AND robot functions
@app.route('/video_feed')
def video_feed():
return Response(generate_frames(), mimetype='multipart/x-mixed-replace; boundary=frame')
if __name__ == '__main__':
app.run(host='0.0.0.0', port=5000)
GPIO.cleanup()
Bill of Materials
| Part | Note | Price | Link | |:–:|:–:|:–:|:–:| | Raspberry Pi Kit | Allows interaction between the software and hardware | $95.19 | Link | | Robot Chassis | Baseline structure | $18.99 | Link | | Screwdriver Kit | Assemble chassis | $5.94 | Link | | Ultrasonic Sensors | Detecting distance | $9.99 | Link | | H Bridges | Control power to motors | $8.99 | Link | | Pi Cam | Recorded and updated livestream | $12.86 | Link | | Electronics Kit | Jumper wires and breadboard to connect devices | $11.98 | Link | | Motors | Powers rotary wheels | $11.98 | Link | | DMM | Test power output | $11 | Link | | Champion sports ball | Ball for tracking | $16.73 | Link | | AA batteries | Powering devices | $18.74 | Link | | USB Power Bank | Powering raspberry pi | $16.19 | Link | | Servos for Articulation | Claw function | $6.99 | Link | | Micro-Flashlight for CV Illumination | Illuminate front view for camera | $8.99 | Link |
Other Resources/Examples
One of the best parts about Github is that you can view how other people set up their own work. Here are some past BSE portfolios that are awesome examples. You can view how they set up their portfolio, and you can view their index.md files to understand how they implemented different portfolio components.
To watch the BSE tutorial on how to create a portfolio, click here.
